The Miniature Circuit Breaker (MCB) is an essential electrical component widely used in residential and commercial electrical systems. It plays a crucial role in protecting circuits from faults such as overloads and short circuits. This article will explore what an MCB is, its functions, advantages, and how it compares to traditional fuses.

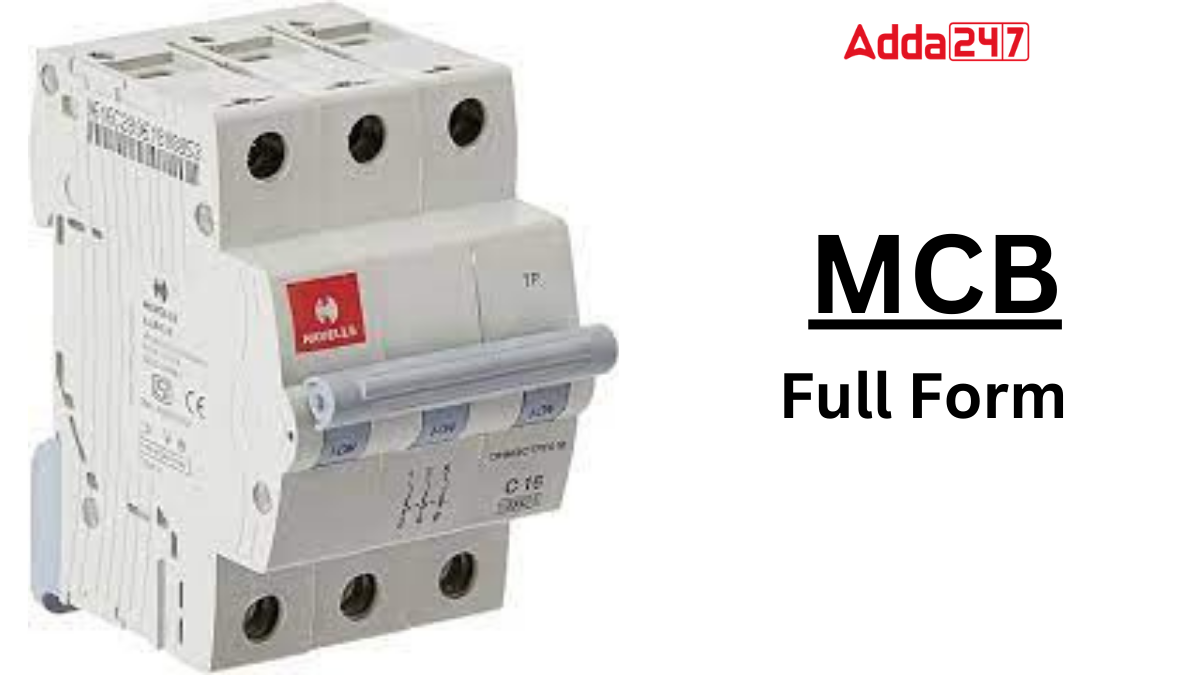

Full Form of MCB
The full form of MCB is Miniature Circuit Breaker. It is an automatic electrical switch that protects circuits by detecting excessive current flow. When the current exceeds a set limit, the MCB interrupts the circuit, preventing damage from overheating or short circuits.
What is an MCB?
The full form of MCB is Miniature Circuit Breaker. It is an automatic electronic switch that can detect electrical faults by monitoring the current flow in a circuit. When the current exceeds a predefined limit, the MCB will automatically break the circuit, preventing potential damage due to overheating or short circuits. Unlike traditional fuses that need replacement after a fault, MCBs can simply be reset and reused.
Classification of Miniature Circuit Breaker
MCBs can be classified based on their usage, tripping mechanisms, number of poles, and trip curves.
As per Usages
There are six primary types of MCBs used for different electrical applications:
- Type A: Triggers when the current exceeds 2-3 times the normal flow. Highly sensitive, it is suitable for semiconductor manufacturing.
- Type B: Trips off when current rises to 3-5 times the normal flow. It is used for low inrush loads, such as electronic and computer equipment, and has an operating time of 0.04-13 seconds.
- Type C: Activates when current reaches 5-10 times the full load. It is suitable for inductive and resistive loads, commonly found in transformers and fluorescent lighting, with an operating time of 0.04-5 seconds.
- Type D: Trips when current is 10-20 times the full load. Ideal for high inrush current applications, such as X-ray machines, with an operating time of 0.04-3 seconds.
- Type K: Activates between 8-12 times the normal flow. It is designed for motor loads and has a high sensitivity to inrush currents, with an operating time of less than 0.1 seconds.
- Type Z: Triggers at 2-3 times the normal flow and is used to protect against weak overloads and short circuits, with an operating time of less than 0.1 seconds.
As per the Tripping Mechanism
MCBs also differ based on their tripping mechanisms:
- Thermal Trip Unit: Uses bimetallic components to protect against overloads, which operate inversely with current levels.
- Magnetic Trip Unit: Utilizes an armature and electromagnet to safeguard against short circuits.
As per the Number of Poles
MCBs are available in various pole configurations:
- Single Pole (SP): Protects one phase in a circuit.
- Double Pole (DP): Protects and switches between neutral and phase.
- Triple Pole (TP): Specifically for three-phase circuits.
- Three Pole with Neutral (3P+N): Protects all three phases and neutral.
- Four Pole (4P): Similar to TP but includes protection for the neutral pole.
As per Trip Curves
Trip curves illustrate the relationship between tripping times and current levels:
- Type B: Suitable for domestic appliances with low surge currents.
- Type C: Used in industrial applications for moderate inrush currents.
- Type D: Ideal for high inrush applications.
Working Principle of MCB
MCBs function as an alternative to fuses, offering enhanced protection for electrical circuits. During a short circuit, a sudden surge in current causes the displacement of plungers in the tripping coil or solenoid. This displacement strikes a trip lever, releasing a latch that opens the circuit breaker. For overload protection, a bimetallic strip heats up and bends due to continuous excess current, triggering the mechanical latch release and opening the circuit.
Functions of MCB
The primary functions of an MCB include:
- Protection Against Overcurrent: MCBs are designed to safeguard electrical circuits from excessive current and overheating. They provide a reliable and efficient means of circuit protection.
- Automatic Switching: When the current surpasses the set limit, the MCB automatically switches off, interrupting the current flow and protecting the circuit from potential damage.
- Manual Reset: After a fault occurs, the MCB must be manually switched back on to restore power to the circuit. This feature ensures that the user is aware of the issue before reactivating the circuit.
Advantages of MCB
Using MCBs offers several advantages over traditional fuses:
- High Current Capacity: MCBs can handle up to 100 Amps, making them suitable for motor feeders and heavy electrical loads.
- Ease of Management: MCBs are much easier to manage for both electrical devices and users compared to fuses. They provide a straightforward way to monitor and control electrical circuits.
- User-Friendly Interface: Equipped with a knob or lever, MCBs offer a better interface for users, allowing for easy operation and maintenance.
- Reusability: Unlike fuses, which must be replaced after a fault, MCBs can be reset and reused, making them a more cost-effective solution in the long run.
- Increased Sensitivity: MCBs are designed to be more sensitive to current fluctuations, providing faster response times in the event of an electrical fault.
- Simple Restart Process: Users can easily restart an MCB by pressing a button, allowing for quick restoration of power without the need for additional equipment.
